Series 2003 Belt Drive
Designed with a six-inch tall by six-inch wide header, the ProSlide™ 2003 sliding belt drive is capable of handling door panels up to 250lbs. This heavy-duty belt drive door system is engineered for long life and quiet operation in high traffic environments.
Exclusive system features:
- Tested to 1,000,000 cycles
- Two-year limited warranty
- Heavy duty 1/8 HP motor belt drive system
- Patented solid panic breakout system with continuous interlocking. This ensures dependable no-sagging operation along with effortless resetting.
- Adjustable astragal with double mohair for lasting and superior weatherseal.
- Superior high-strength corner block door panel construction for years of dependable service.
Applications:
- Medical Offices
- Assisted Living
- Hospitals
- Urgent Care
- Data Centers
- Financial Institutions
- Warehouses
- Airports
- Courthouses
- Entertainment
- Food Store
- Hotels
- Restaurants
- Retail Stores
- Shopping Centers
- Fire & Police Stations
- Government Buildings
Where Used:
- Main Entrances
- Security Doors
- Emergency Entrances
- Internal Security Barriers
- Lounges
- Entrances
- Typical Transoms A5.0
- Additional Standard Sidelites A5.1
- Additional Door Type Sidelite and Optional Framing Jambs A5.2
- Thresholds and Floor Guides A5.3
- Standard Pushbar and Optional Rails A5.4
- Standard and Optional Glass Prep A5.5
- Emergency Breakaway and Manual Locking A5.6
- Surface Mount Exit Device for Type 310 Units A5.7
- Flush Exit Device for Types 110 and 310 Units A5.8
- Typical Activation - Touch-less Switches, Motion Sensors, Push Plates
Check Out Our BIM Objects
-
Series 2003 Belt Drive
View Now
| product name | breakout | header size | hand | installation | architectural details | architectural specs | cad | Add to My Inquiries |
|---|---|---|---|---|---|---|---|---|
| ProSlide® Series 2003 Belt Drive | None | 6" x 6" | O-X or X-O | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | None | 6" x 6" | P-X or X-P | Surface Mount | ||||
| ProSlide® Series 2003 Belt Drive | None | 6" x 6" | O-X-X-O | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | None | 6" x 6" | P-X-X-P | Surface Mount | ||||
| ProSlide® Series 2003 Belt Drive | Partial | 6" x 6" | O-SX or SX-O | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | Partial | 6" x 6" | P-SX or SX-P | Surface Mount | ||||
| ProSlide® Series 2003 Belt Drive | Partial | 6" x 6" | SX-O-O-SX | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | Partial | 6" x 6" | O-SX-SX-O | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | Partial | 6" x 6" | P-SX-SX-P | Surface Mount | ||||
| ProSlide® Series 2003 Belt Drive | Full | 6" x 6" | SO-SX or SX-SO | Perimeter Mount | ||||
| ProSlide® Series 2003 Belt Drive | Full | 6" x 6" | SO-SX-SX-SO | Perimeter Mount |

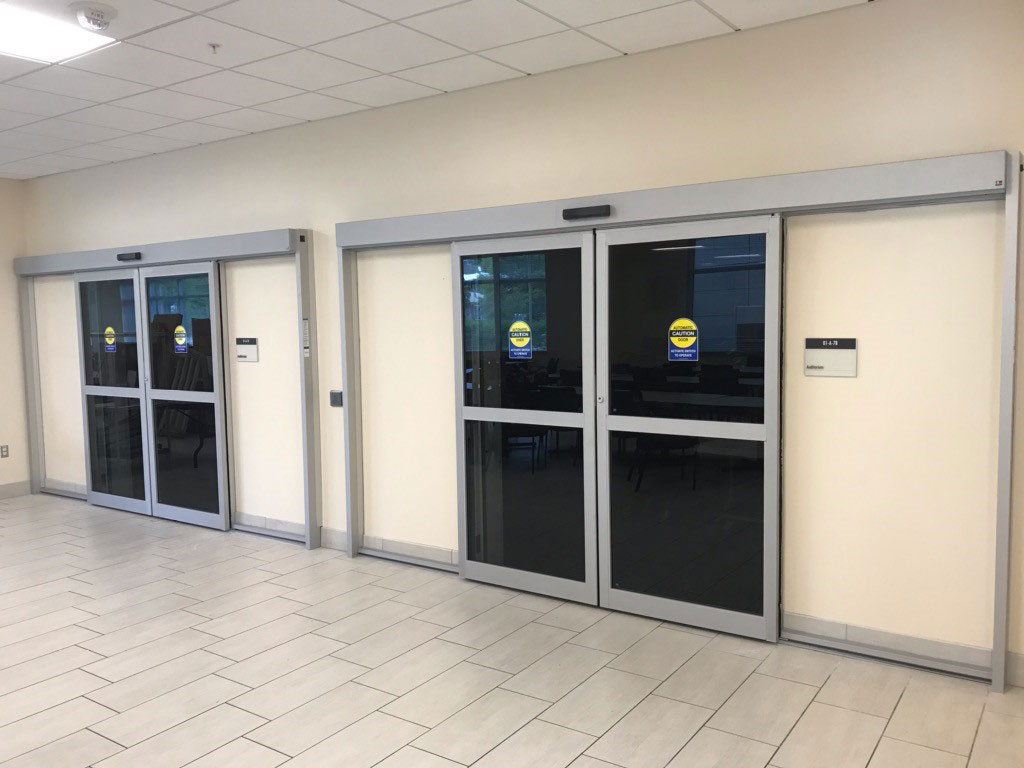

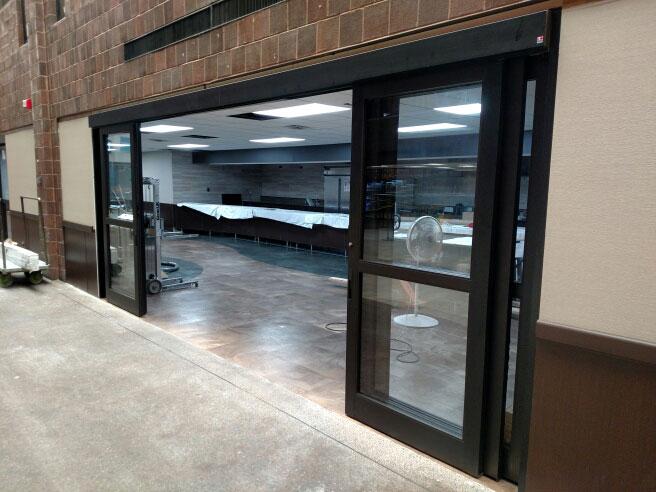

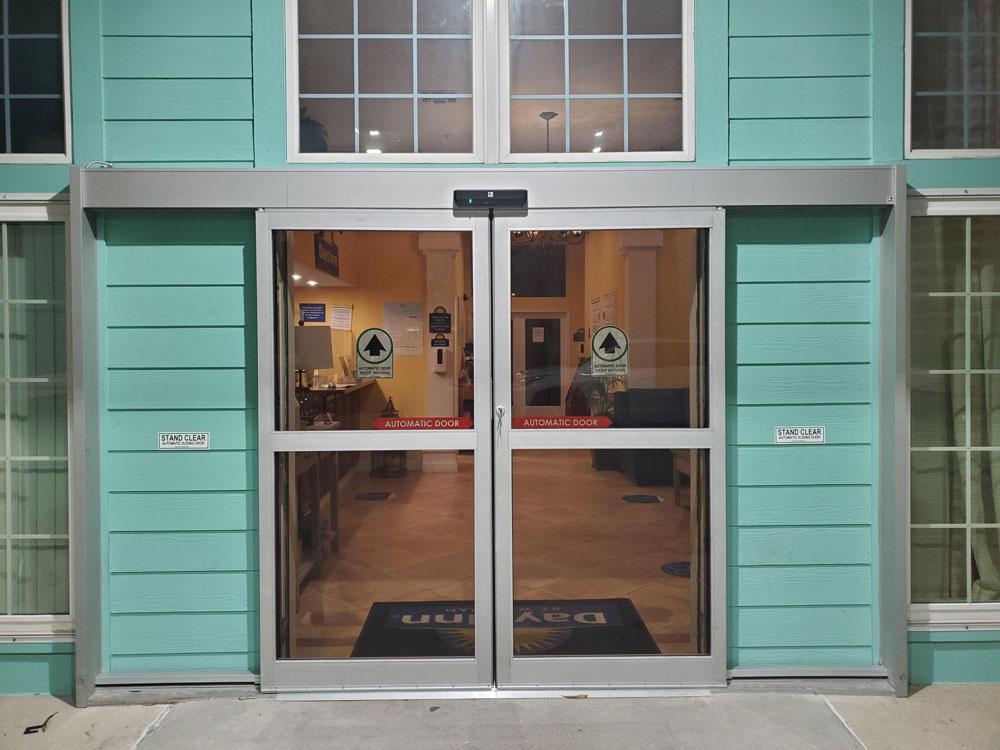

Product Gallery
