Understanding the Design Features Behind Long-Term Performance

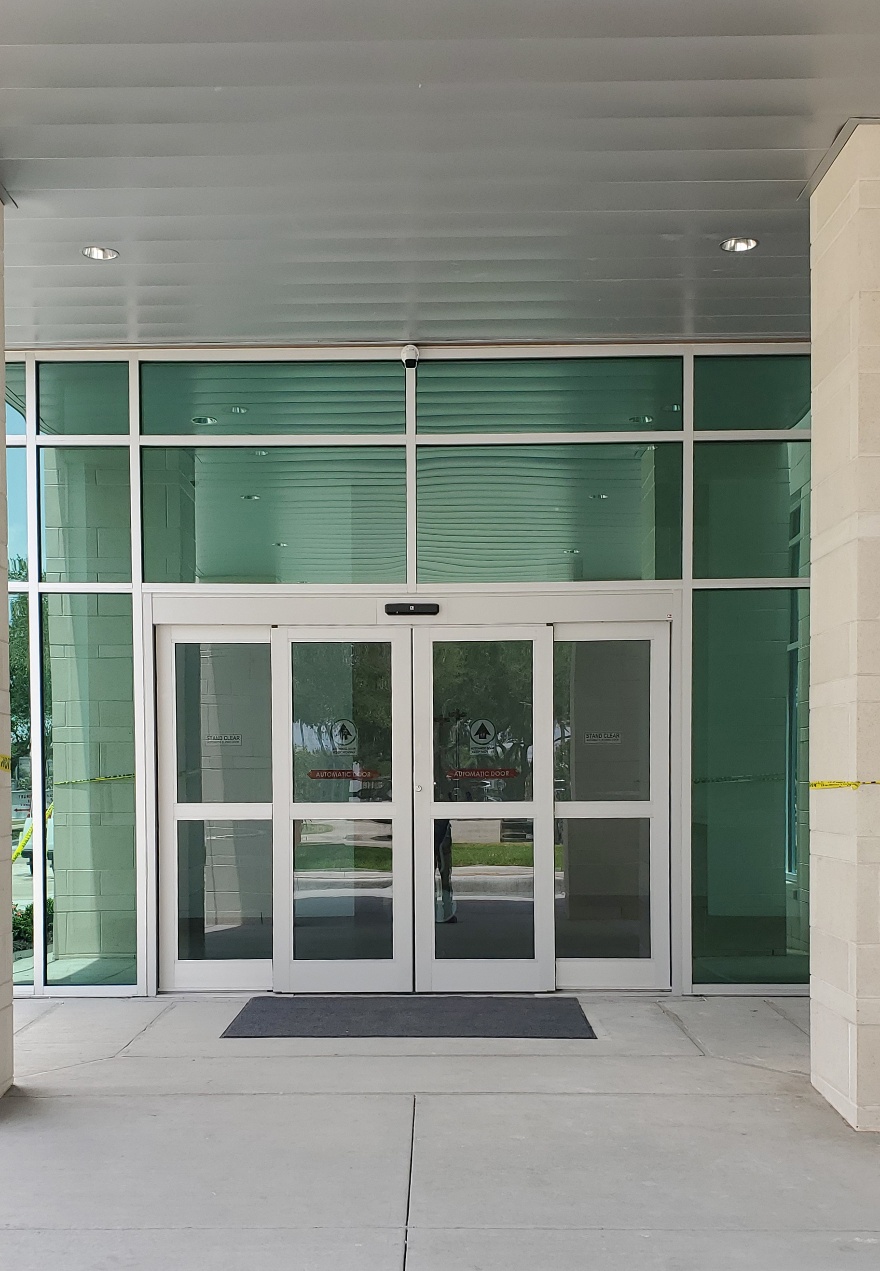

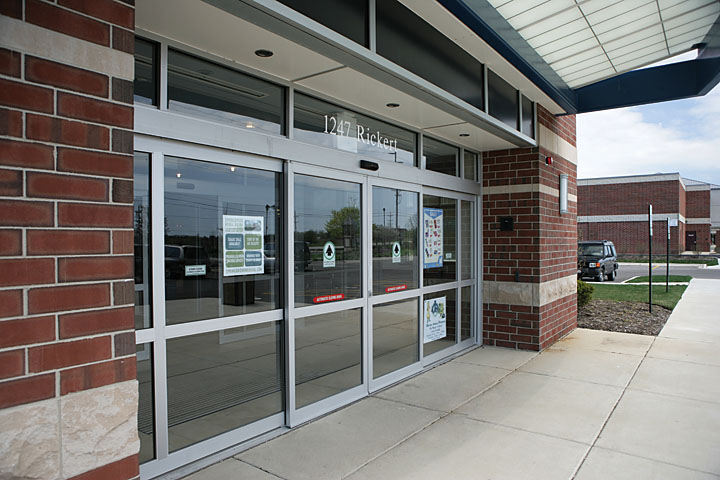

Commercial automatic sliding door system designed for long-term performance.
Understanding what contributes to automatic sliding door durability can help architects, facility managers, and specifiers make more informed decisions and reduce long-term maintenance costs.
In our previous article, we discussed five questions to ask before specifying an automatic sliding door system. One of the most important considerations was durability. Here, we'll take a closer look at the design features that help automatic door systems perform reliably for years to come.
Automatic door systems are among the hardest-working components in a commercial building. In healthcare facilities, airports, retail stores, office buildings, and educational campuses, entrances may open and close hundreds or even thousands of times each day.
While routine maintenance plays an important role in extending service life, the durability of an automatic door system often begins with its design. Certain engineering features can help reduce wear, improve environmental performance, and maintain reliable operation over years of continuous use.
When evaluating commercial automatic sliding door systems, these four design elements can provide valuable insight into long-term durability and performance.
1. Corner Block Construction Helps Maintain Panel Integrity
The door panel is the most visible part of an automatic entrance, but its internal construction often plays a much greater role in long-term durability. The way a panel is assembled can affect its structural integrity, ability to maintain alignment, and overall performance throughout years of continuous operation.
Some commercial automatic sliding door systems utilize heavy-duty rails with integral corner block construction rather than traditional through-bolt panel assembly. This approach helps create a more rigid connection between horizontal and vertical framing members, improving structural integrity and helping the panel maintain proper alignment over time.
Benefits can include:
- Increased structural rigidity
- Improved resistance to twisting and racking
- Better alignment over the life of the door
- Better performance in high-traffic environments
- Reduced likelihood of frame movement affecting door operation
Over years of operation, door panels are subjected to constant movement, vibration, and everyday wear. In some panel designs, these forces can contribute to twisting, misalignment, and premature wear of critical components. Reinforced corner block construction helps resist these stresses, supporting smoother operation, reduced maintenance requirements, and long-term reliability.

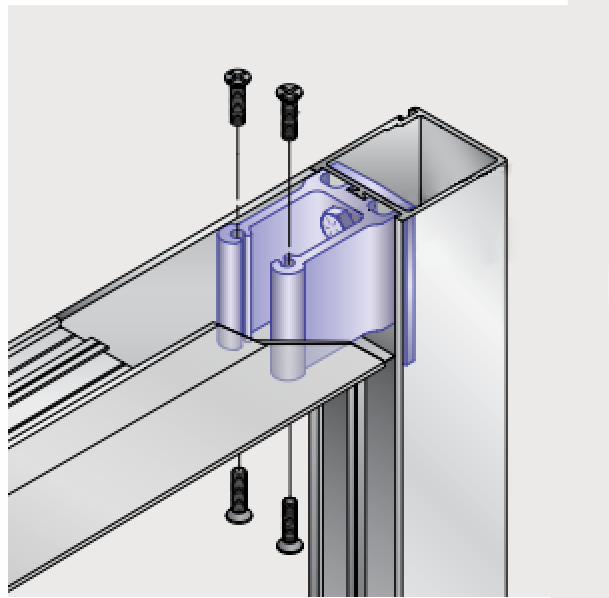

Commercial-grade heavy-duty rails with integral mortise-style corner block construction.
2. Floating Astragals Accommodate Movement and Improve Performance
Automatic door systems are constantly exposed to changing environmental conditions. Temperature changes, building movement, and everyday wear can all impact how door panels interact with one another.
Floating astragals help maintain an effective seal between sliding door panels while accommodating minor movement and adjustment over time.
This design feature can offer several advantages:
- Improved sealing between door panels
- Reduced air infiltration
- Better long-term alignment
- Consistent performance despite normal building movement
While often overlooked, these small design details can contribute significantly to the long-term reliability and efficiency of a sliding door system.

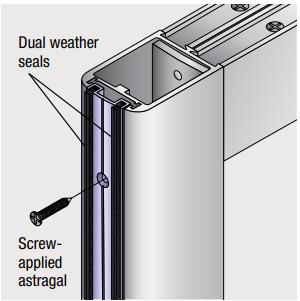

Tight Double Astragal Weather Seals
3. Captured Weather Seals Help Protect the Entrance System
Weather seals play an important role in entrance performance. However, not all sealing systems are created equally.
In some designs, weather seals may simply be attached to the door panel surface. Over time, exposure to traffic, cleaning procedures, and environmental conditions can cause those seals to loosen, wear prematurely, or become damaged.
Effective sealing is important not only for energy efficiency and comfort, but also for applications where environmental control is critical. In healthcare, pharmaceutical, and cleanroom environments, door system design can play a significant role in maintaining performance requirements.
Captured weather seals are engineered to remain securely retained within the door system itself, helping them stay in place throughout years of operation.
Potential benefits include:
- Improved resistance to wear and damage
- Reduced air infiltration
- Better indoor comfort
- Lower maintenance requirements
- More consistent performance over time
For facilities focused on sustainability and energy efficiency, maintaining effective weather sealing can contribute to overall building performance.
Cycle Testing Provides Insight into Long-Term Reliability
One of the best indicators of automatic door system durability is how a system performs under repeated use.
Many manufacturers conduct cycle testing to evaluate the long-term performance of door operators, moving components, and overall system design. During testing, doors repeatedly open and close under controlled conditions to simulate years of real-world operation.
When reviewing automatic door systems, consider asking:
- Has the system undergone cycle testing?
- What testing standards were followed?
- How many operating cycles were completed?
- Were the complete door system and operator evaluated together?
While no testing program can perfectly replicate every field condition, comprehensive testing can provide valuable insight into how a system is likely to perform over time.
What Determines the Lifespan of an Automatic Door System?
The longevity of an automatic door system is rarely determined by a single feature. Instead, long-term performance is typically the result of multiple design decisions working together, from panel construction and sealing systems to operator reliability and overall engineering quality.
For architects, specifiers, contractors, and facility managers, understanding these design features can help inform entrance selections that deliver years of reliable performance while reducing maintenance demands and total lifecycle costs.
Looking Beyond the Initial Installation
A well-designed automatic door system should do more than function properly on opening day. It should continue to provide safe, smooth, and efficient operation through years of daily use.
Features such as corner block construction, floating astragals, captured weather seals, and extensive cycle testing may not be immediately visible, but they can have a meaningful impact on long-term durability and performance.
Want to learn more about evaluating automatic door systems? Contact Horton Automatics to discuss your application requirements and explore solutions designed for long-term reliability and performance.
Coming Next in the Blog Series
Understanding Cleanroom Door Requirements: ISO 3 vs. ISO 5
Not all automatic door applications have the same requirements. In our next article, we'll explore how cleanroom classifications affect door selection and what architects, specifiers, and facility managers should know when designing spaces for healthcare, pharmaceutical, and high-tech manufacturing environments.
Author: Krista Rivers, Marketing Manager, Door Services Corporation
