Introduction: Beyond Initial Cost

Author: J Elias Campos, VP Marketing, Horton Pedestrian Access Solutions

When specifying entrance systems for commercial buildings, the conversation typically begins and ends with initial installation costs. A revolving door at $25,000 seems dramatically more expensive than a swing door at $3,500. However, this short-term focus obscures a critical reality: over a typical 20-year building lifecycle, that "inexpensive" swing door will cost $103,500 in total ownership costs, while the revolving door totals just $77,000—a savings of $26,500.

This article presents quantifiable data from MIT research and real-world applications to help architects make informed decisions about entrance systems based on true lifecycle costs, energy performance, and environmental impact.

The Energy Performance Gap: Quantified

Air Leakage: The Critical Variable

Research conducted at MIT's measured actual air infiltration rates across different door types under real operating conditions. The findings reveal substantial differences:

Annual Average Air Leakage Rates:

Revolving Door (4-wing): ~700 CFM baseline

Automatic Sliding Door: ~1,400 CFM (+100% vs revolving)

Swing Door with Vestibule: ~2,100 CFM (+200% vs revolving)

Single Swing Door: ~2,950 CFM (+321% vs revolving)

These measurements translate directly to energy consumption. In a typical commercial building operating 9 hours daily with 837 people per hour traffic:

Annual Energy Consumption:

Revolving Door: ~15,000 kWh/year

Sliding Door: ~25,000 kWh/year

Swing Door (vestibule): ~40,000 kWh/year

At $0.12/kWh, this represents annual energy costs of $1,800, $3,000, and $4,800 respectively.

The Usage Rate Factor

The MIT study identified revolving door usage rate as the single most impactful variable. When revolving doors are installed alongside swing doors for accessibility, the actual usage rate determines overall entrance energy performance:

Current Reality:

Baseline usage rate: 23.3% (most people choose the easier swing door)

Resulting air leakage: 2,949.7 CFM annual average

Winter leakage: 3,590.4 CFM (December-March)

Optimization Potential: Increasing revolving door usage to 50-75% through design and signage reduces annual energy consumption by:

50% usage: 14.5% reduction = 14,000 kWh saved = $500-700/year

75% usage: 38.7% reduction = 38,000 kWh saved = $1,200-1,500/year

This finding underscores an important architectural principle: entrance design should encourage, not merely accommodate, energy-efficient circulation patterns.

Lifecycle Cost Analysis: The 20-Year Reality

Breaking Down Total Ownership Costs

Year 0 - Initial Investment:

Revolving Door: $25,000

Sliding Door: $8,000

Swing Door: $3,500 (or $7,000 with vestibule)

Annual Operating Costs:

Door Type	Energy Cost	Maintenance Cost	Total Annual
Revolving	$1,800	$800	$2,600
Sliding	$3,000	$500	$3,500
Swing	$4,800	$200	$5,000

20-Year Total Cost of Ownership:

Revolving Door: $25,000 + ($2,600 × 20) = $77,000

Sliding Door: $8,000 + ($3,500 × 20) = $78,000

Swing Door: $3,500 + ($5,000 × 20) = $103,500

The Break-Even Point

The critical question for building owners: "How long before energy savings pay back the higher initial investment?"

Revolving vs. Swing Door Break-Even Analysis:

Break-even occurs when total costs equal:

$25,000 + ($2,600 × N) = $3,500 + ($5,000 × N)

$21,500 = $2,400 × N

N = 8.96 years

After approximately 9 years, the revolving door becomes less expensive than the swing door despite costing $21,500 more initially. For any building with a design life exceeding 10 years, the revolving door represents superior financial value.

Revolving vs. Sliding Door Break-Even:

Break-even: ~18.9 years

Both options are financially comparable over 20 years

Choice depends on architectural requirements and traffic patterns

Environmental Impact: Carbon Footprint Analysis

Beyond financial considerations, entrance systems significantly impact a building's carbon footprint. Using the EPA conversion factor of 0.19 tons CO₂ per 1,000 kWh:

Annual CO₂ Emissions by Door Type:

Revolving Door: 2.85 tons CO₂/year

Sliding Door: 4.75 tons CO₂/year

Swing Door: 7.60 tons CO₂/year

20-Year Lifecycle Carbon Savings vs. Swing Door Baseline:

Revolving Door: 95 tons CO₂ saved

Equivalent to: 238 trees planted or 21 cars off the road for one year

Sliding Door: 57 tons CO₂ saved

Equivalent to: 143 trees planted or 12 cars off the road for one year

For projects pursuing LEED certification or carbon neutrality goals, these differences contribute meaningfully to Optimize Energy Performance (EA) credits and can support documentation for innovation credits when entrance systems are optimized beyond code minimum requirements.

Design Variables That Impact Performance

Door Configuration: Critical Factors

Number of Wings (3 vs. 4):

Four-wing revolving doors provide superior sealing performance compared to three-wing designs:

4-wing configuration: ~700 CFM air leakage (baseline)

3-wing configuration: ~950 CFM air leakage (+36% higher)

The additional wing provides more frequent seal contact during rotation, reducing infiltration gaps. While 3-wing doors cost less initially ($18,000-$22,000 vs. $25,000-$30,000), the 30-40% increase in energy consumption negates savings within 5-7 years.

Architectural Recommendation: Specify 4-wing configurations for buildings in climate zones with significant heating or cooling degree days. Reserve 3-wing doors for mild climates or lower-traffic applications where initial cost constraints are paramount.

Door Diameter:

Standard revolving doors range from 6 to 12 feet in diameter. Diameter impacts energy performance through:

Air displacement volume: Scales with π × (diameter/2)²
8 ft diameter vs. 10 ft diameter = 56% more volume per revolution
Rotation speed: Larger doors rotate more slowly
Seal perimeter: Longer seal length = more potential leakage points

Estimated Energy Impact:

8 ft diameter (baseline): 100%

10 ft diameter: +15-25% energy consumption

6 ft diameter: -20-30% energy consumption

Architectural Recommendation: Right-size revolving doors for actual traffic volumes. Oversizing increases both initial cost and operating cost. Traffic studies during programming phase should inform diameter selection.

Building-Specific Variables

Climate Zone Considerations:

Temperature differential (ΔT) between interior and exterior drives both infiltration rate and energy impact:

Cold Climates (ΔT = 50°F winter): Energy savings from revolving doors maximize during heating season. Payback periods shorten to 6-8 years.

Hot-Humid Climates (ΔT = 25°F summer): Cooling energy savings significant, plus latent load reduction from humidity control.

Mild Climates (ΔT = 15°F average): Extended payback periods (12-15 years) may favor sliding doors with good seals.

Traffic Patterns:

High-traffic buildings (>500 people/hour) benefit most from revolving doors:

More revolutions = more people per energy penalty cycle

Better amortization of higher initial cost

Enhanced circulation management

Low-traffic buildings (<100 people/hour) may see reduced ROI unless climate is extreme.

Practical Specification Guidelines

Decision Matrix for Architects

Specify Revolving Doors When:

Building design life >10 years

High traffic volume (>300 people/hour peak)

Extreme climate zone (>4,000 HDD or >2,000 CDD)

LEED or carbon reduction goals

Building pressurization is critical (labs, cleanrooms)

Monumental entrance aesthetic desired

Specify Automatic Sliding Doors When:

Moderate traffic (100-500 people/hour)

Space constraints limit revolving door diameter

All-accessible entrance required (no secondary doors)

Building height <4 stories (reduced stack pressure)

Moderate climate conditions

Specify Automatic Swing Doors When:

Low traffic (<100 people/hour)

Budget constraints are severe

Adaptive reuse where structural modifications are limited

Aesthetic requirement for traditional appearance

Always with vestibule in climate zones 4-8

Integration with Building Systems

For maximum energy performance, specify entrance automation with:

Building Automation System (BAS) Integration:

Schedule-based operation modes (reduce sensitivity during off-peak)

Coordination with HVAC pre-conditioning cycles

Remote monitoring of air infiltration through pressure differential sensors

Vestibule HVAC Design:

Dedicated vestibule conditioning maintains thermal buffer zone

Reduces thermal shock on primary HVAC system

Particularly effective with automatic doors at both vestibule positions

Security System Coordination:

Card readers and access control integration

After-hours lockdown modes that prevent unnecessary door activation

Video analytics to track usage patterns for optimization

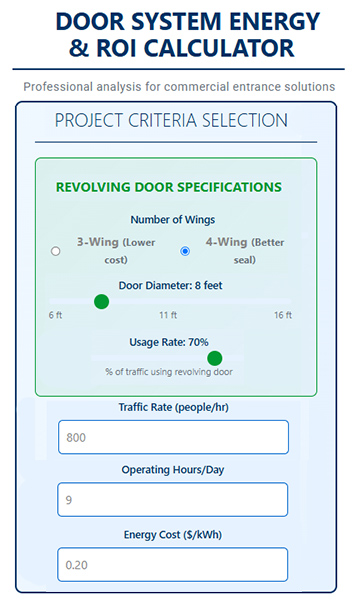

Using the Energy Savings Calculator

Horton Automatics provides an interactive Energy Savings Calculator that enables architects to model specific project conditions and compare door options with customized inputs:

Variables You Can Model:

Traffic rate (people per hour)

Operating hours per day

Climate data (temperature differential, heating/cooling degree days)

Door specifications (wings, diameter, seal condition)

Energy costs (local utility rates)

Analysis period (10-30 years)

Maintenance cost assumptions

HVAC system efficiency

Outputs Provided:

Annual energy consumption by door type (kWh)

Lifecycle cost comparison with break-even analysis

Annual and lifetime CO₂ emissions

ROI calculations and payback periods

Environmental impact metrics (trees, cars equivalent)

Summary recommendations based on your inputs

Access the Calculator: Energy Savings Interface - Horton Doors

We encourage architects to use this tool during programming and schematic design phases to generate quantified comparisons for client presentations and specification justification.

Real-World Applications and Case Studies

High-Traffic Commercial Building

Project: Corporate headquarters, Boston (Climate Zone 5A) Traffic: 1,200 people/hour peak, 9-hour daily operation Solution: 10-ft diameter, 4-wing revolving door with flanking automatic sliding doors

Results:

Revolving door usage: 68% (achieved through wayfinding and design)

Annual energy savings vs. swing door baseline: 32,000 kWh

Annual cost savings: $1,280/year

Payback period: 7.3 years

20-year lifecycle savings: $21,600

CO₂ reduction: 81 tons over 20 years

Hospital Emergency Department

Project: Regional medical center, Minneapolis (Climate Zone 6A) Traffic: 450 people/hour average, 24-hour operation Solution: Automatic sliding doors (accessibility requirement)

Results:

Annual energy consumption: 36,000 kWh (vs. 57,000 kWh for swing doors)

Annual cost savings vs. swing baseline: $2,520/year

Payback for sliding vs. swing: 1.6 years

Added benefit: Improved traffic flow during ambulance arrivals

Note: Revolving doors were considered but rejected due to emergency vehicle access requirements. This demonstrates that energy analysis must integrate with functional requirements—not override them.

Compliance and Standards Reference

When specifying automatic doors for energy performance, architects should reference:

Safety and Performance:

ANSI /BHMA A156.10: Power-operated pedestrian doors

ANSI /BHMA A156.19: Low energy power-operated doors

Energy and Envelope:

ASHRAE 90.1: Section 5.4.3.4 (Vestibules required in climate zones 3-8)

IECC: Section 402.5 (Vestibule requirements)

ASHRAE 189.1: High-performance building standard

Accessibility:

ADA /ABA Guidelines: Section 404 (Doors, doorways, and gates)

ICC A117.1: Accessible and usable buildings and facilities

Green Building Certification:

LEED v4.1: EA Prerequisite (Minimum Energy Performance)

LEED v4.1: EA Credit (Optimize Energy Performance) - entrance system optimization can contribute to percentage improvement

LEED v4.1: SS Credit (Heat Island Reduction) - revolving doors reduce thermal loads

Living Building Challenge: Energy Petal (Net Positive Energy) - entrance infiltration impacts modeling

Best Practices for Specification

1. Conduct Traffic Studies During Programming

Document peak and average traffic rates

Identify circulation patterns and user preferences

Right-size door systems to actual demand

2. Perform Climate-Specific Energy Modeling

Use local weather data (HDD/CDD)

Model seasonal variations in performance

Calculate site-specific payback periods

3. Design for Behavioral Optimization

Position revolving doors on primary circulation path

Make automatic sliding doors secondary (flank) positions

Use wayfinding graphics to encourage revolving door use

Consider door size that subtly encourages use (not intimidating)

4. Specify Complete Vestibule Systems

Minimum 7-foot depth between door positions

Automatic doors at both exterior and interior positions

Dedicated vestibule heating/cooling if budget allows

Pressure monitoring for verification

5. Include Performance Commissioning

Verify air infiltration rates post-installation

Optimize timing, force, and sensor settings

Document usage patterns for first 90 days

Adjust operation to maximize efficiency

6. Plan for Preventive Maintenance

Specify annual inspections per ANSI A156.10

Include seal inspection and replacement schedule

Budget for long-term maintenance in pro forma

Design for maintenance access (ceiling height, service clearance)

7. Document Energy Assumptions

Include lifecycle cost analysis in specifications

Provide energy modeling results to owner

Establish baseline for commissioning verification

Support LEED or other certification submittals

Conclusion: Data-Driven Decision Making

The entrance system selection process has traditionally relied on initial cost and aesthetic preference. However, as this analysis demonstrates, the long-term financial and environmental implications of this decision are substantial.

Key Takeaways for Architects:

Lifecycle costs matter more than initial costs. Over 20 years, a revolving door saves $26,500 compared to swing doors despite costing $21,500 more initially.
Energy differences are dramatic. Revolving doors consume 62% less energy than swing doors annually—a difference that compounds over building lifetime.
Environmental impact is measurable. A single entrance system choice can reduce carbon emissions by 95 tons over 20 years—equivalent to planting 238 trees.
Usage patterns are crucial. Design that encourages revolving door use (achieving 60-75% vs. typical 23%) unlocks maximum energy savings.
Configuration details matter. The difference between 3-wing and 4-wing designs, or 8-ft and 10-ft diameter, significantly impacts both cost and performance.
Climate drives ROI. Payback periods vary from 6 years (extreme climates) to 15+ years (mild climates)—regional analysis is essential.

The Energy Savings Calculator by Horton Doors enables architects to move beyond generic assumptions and generate project-specific analysis that supports informed specification decisions. By incorporating quantified energy performance into entrance design, architects deliver measurable value that extends decades beyond project completion.

For building owners increasingly focused on operating costs, carbon reduction, and sustainable operations, entrance systems optimized for energy performance represent one of the most cost-effective investments in building efficiency available. For architects committed to evidence-based design, the data supporting this specification decision has never been clearer.

For technical support, energy modeling assistance, and project-specific calculations, visit hortondoors.com or access the Energy Savings Calculator here. Horton Automatics provides comprehensive documentation to support LEED submittals, energy code compliance, and lifecycle cost analysis for specification justification.

About the Research: Analysis based on an MIT study measuring real-world air infiltration rates, traffic patterns, and energy consumption across door types under actual operating conditions. Study methodology included direct CFM measurements, thermal imaging, and multi-season data collection.

Calculator Access: Interactive modeling tool available at https://www.hortondoors.com/resources/leed-energy-calculator/ allowing architects to input project-specific variables and generate customized lifecycle cost and energy performance comparisons.
